API ANSI JIS DIN Baja tahan karat Ventil bola tetap Ventil bola bermotor
API ANSI JIS DIN Baja tahan karat Ventil bola tetap Ventil bola bermotor
Properti Dasar
Negara Asal
Wuhan, Hubei, Cina
Nama Merek
Grat
Sertifikat
IP67,CCC, ISO, CE,CNAS
Model Produk
EK-0000141
Properti Perdagangan
MOQ
1pc
Patokan Harga
USD $100.00/ Piece
Metode Pembayaran
L/C, T/T, D/P, PayPal, Western Union
Kapasitas Pasokan
1000PCS/Minggu
Ringkasan Produk
API ANSI JIS DIN stainless steel Fixed Ball Valve Motorized Ball Valve Deskripsi produk: API ANSI JIS DIN Motorized Ball Valve/IP67/Fixed Ball Valve Deskripsi: Spesifikasi: Sumber daya listrik AC220V Ukuran tubuh DN15-250 Suhu sedang -80°C~160°C (tidak beku) Tekanan operasi PN1.0 ~ 2.5 ((MPa) Modus ...
Rincian produk
Menyoroti:
Katup Bola Bermotor
,Katup bola tetap dari stainless steel
Brand Name:
GRAT
Minimum Order Quantity:
1 PC
Place Of Origin:
Wuhan, Hubei, Cina
Delivery Time:
3 hari kerja
Packaging Details:
Karton/kotak Kayu
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Media:
Air
Material:
Baja tahan karat
Connection Form:
Flang
Driving Mode:
Listrik
Nominal Pressure:
PN1.0-32.0MPa
Channel:
Tipe Lurus Melalui
Type:
Katup Bola Tetap
Temperature:
Suhu normal
Application:
Penggunaan Industri, Penggunaan Industri Air
Medium:
Asam, Alkali, Garam, Gas Klorin, Uap, Air Sumber
Structure:
Katup Bola Tetap
Function:
Katup bypass
Size:
DN15-250
HS Code:
8481804090
Deskripsi Produk

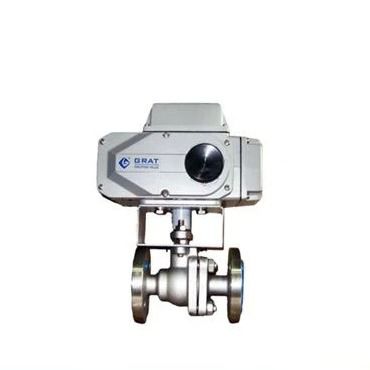

API ANSI JIS DIN stainless steel Fixed Ball Valve Motorized Ball Valve
Deskripsi produk:
API ANSI JIS DIN Motorized Ball Valve/IP67/Fixed Ball Valve
Deskripsi:
Spesifikasi:
| Sumber daya listrik | AC220V |
| Ukuran tubuh | DN15-250 |
| Suhu sedang | -80°C~160°C (tidak beku) |
| Tekanan operasi | PN1.0 ~ 2.5 ((MPa) |
| Modus Aksi | 4-20mA Umpan balik input sinyal, 0-90° putaran |
| Waktu tindakan | 4 ~ 30S |
| Koneksi tubuh | Flange |
| Bahan tubuh | WCB, ZG1CrM0, ZG1Cr18Ni9Ti |
| Bahan yang disegel | PTFE |
| Bahan aktuator | Pembuatan paduan aluminium |
| Medium yang berlaku | Asam, alkali, garam, gas klorin, uap, air sumber, pulp tambang dan kertasPulp, aqua regia, oksidant, agen reduksi, cairan kimia korosif. |

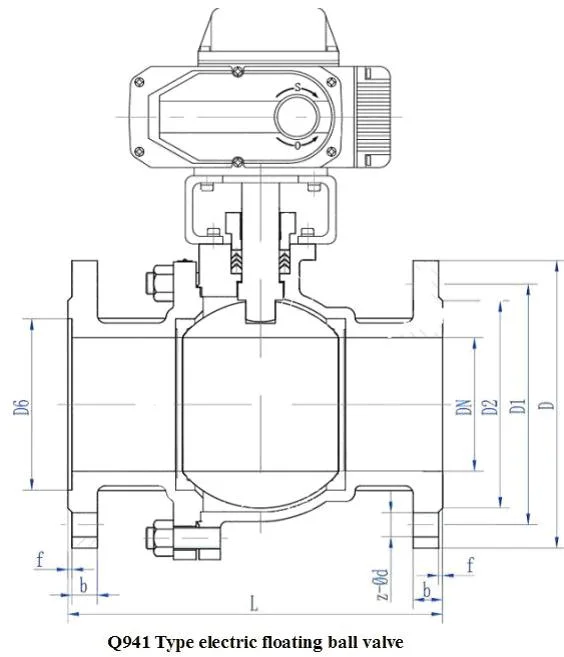

Angka ukuran instalasi
|
Ukuran MPa DN |
C | D | D1 | D2 | Z-d | f | b | |
| 15 | 1.0 | 132 | 95 | 65 | 45 | 4-14 | 2 | 14 |
| 1.6 | 132 | 95 | 65 | 45 | 4-14 | 2 | 15 | |
| 20 | 1.0 | 142 | 105 | 75 | 55 | 4-14 | 2 | 16 |
| 1.6 | 142 | 105 | 75 | 55 | 4-14 | 2 | 16 | |
| 25 | 1.0 | 150 | 115 | 85 | 65 | 4-14 | 2 | 16 |
| 1.6 | 150 | 115 | 85 | 65 | 4-18 | 3 | 16 | |
| 32 | 1.0 | 165 | 135 | 100 | 78 | 4-18 | 3 | 16 |
| 1.6 | 165 | 135 | 100 | 78 | 4-18 | 3 | 16 | |
| 40 | 1.0 | 180 | 145 | 110 | 85 | 4-18 | 3 | 17 |
| 1.6 | 180 | 145 | 110 | 85 | 4-18 | 3 | 17 | |
| 50 | 1.0 | 200 | 160 | 125 | 100 | 4-18 | 3 | 18 |
| 1.6 | 200 | 160 | 125 | 100 | 4-18 | 3 | 18 | |
| 65 | 1.0 | 220 | 180 | 145 | 120 | 4-18 | 3 | 20 |
| 1.6 | 220 | 180 | 145 | 120 | 4-18 | 3 | 20 | |
| 80 | 1.0 | 250 | 195 | 160 | 135 | 4-18 | 3 | 22 |
| 1.6 | 250 | 195 | 160 | 135 | 4-18 | 3 | 22 | |
| 100 | 1.0 | 280 | 215 | 180 | 155 | 4-18 | 3 | 22 |
| 1.6 | 280 | 215 | 180 | 155 | 4-18 | 3 | 24 | |
| 125 | 1.0 | 320 | 245 | 210 | 185 | 4-18 | 3 | 24 |
| 1.6 | 320 | 245 | 210 | 185 | 4-18 | 3 | 26 | |
| 150 | 1.0 | 360 | 280 | 240 | 210 | 8-23 | 3 | 24 |
| 1.6 | 360 | 280 | 240 | 210 | 8-23 | 3 | 28 | |
| 200 | 1.0 | 400 | 335 | 295 | 265 | 8-23 | 3 | 26 |
| 1.6 | 400 | 335 | 295 | 265 | 8-23 | 3 | 30 | |
| 250 | 1.0 | 450 | 405 | 350 | 320 | 12-23 | 4 | 28 |
| 1.6 | 450 | 405 | 355 | 320 | 12-23 | 4 | 30 | |
Bahan dari bagian utama
| Nama bagian | Tubuh | Bonet | Kotak isi | cincin kelenjar | Kursi | Pengemasan | Penutup |
|
Bahan merek dagang |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
WCB 40Cr ZG 1Cr18Ni9Ti |
WCB ZG1CrM0 ZG 1Cr18Ni9Ti |
FEP | FEP | WCB |
Medium utama yang berlaku
| Keadaan menengah | Suhu sedang. | Tekanan sedang | Karakteristik menengah | Konsentrasi sedang | Nama menengah |
| Cairan | -80oC~+160oC | 0~20kg/cm2 | Korosi yang kuat, mengasah dengan baik | tak terbatas | Asam, alkali, garam, klorin, uap, air sumber, pulp tambang, pulp kertas, aqua regia, oksidant, agen pengurangan. |
| Gas | -80oC~+160oC | 0~20kg/cm2 | Korosi yang kuat, mengasah dengan baik | tak terbatas | |
| Campuran cair dan padat | -80oC~+160oC | 0~20kg/cm2 | Korosi yang kuat, mengasah dengan baik | < 60% |
Diagram Kontrol
| Model | Sirkuit | Model | Sirkuit |
| S | ON/OFF, tidak ada sinyal output | CPT | ON/OFF, output sinyal 4 ~ 20mA |
| Negara anggota | ON/OFF,output sinyal kontak pasif | PCU | Peraturan, output sinyal 4 ~ 20mA |
| PIU | ON/OFF,output 0~1000Ω sinyal | G | ON/OFF,output sinyal kontak pasif |
| SP | ON/OFF, kontrol posisi tengah | H | ON/OFF, output sinyal kontak pasif |
Pengemasan & Pengiriman:
1.Kemasan: bagian dalam dengan bungkus gelembung, bagian luar dengan kotak karton dankayukasus.
2Pengangkutan:demi laut,demi udara,dengan kereta api.
Jika Anda memiliki persyaratan lain, jangan ragu untuk memberi tahu kami.
