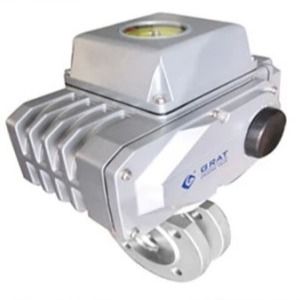

Katup Kontrol Pasokan Air Listrik
Katup Kontrol Pasokan Air Listrik
Properti Dasar
Negara Asal
Wuhan, Hubei, Cina
Nama Merek
Grat
Sertifikat
CCC, ISO, CE, RoHS,CNAS
Model Produk
EDN15-200
Properti Perdagangan
MOQ
1pc
Patokan Harga
To Be Negotiated
Metode Pembayaran
L/C, T/T, D/P, PayPal, Western Union
Kapasitas Pasokan
1000PCS/Minggu
Ringkasan Produk
Katup Kontrol Pasokan Air Listrik DESKRIPSI Produk: Katup kontrol pasokan air listrik/katup bola/Wafer/Flang Deskripsi: spesifikasi: Ukuran katup DN15~DN100 Sumber daya listrik AC220V,AC380V, DC24V Temp. ≤ 220oC Suhu lingkungan. - 30oC-60oC Klasifikasi tubuh 0.1~4.0MPa Tujuan Cepat buka dan tutup ...
Rincian produk
Menyoroti:
Katup Kontrol Pasokan Air Listrik
,Katup Kontrol Pasokan Air
,Katup Kontrol Listrik
Brand Name:
GRAT
Place Of Origin:
Wuhan, Hubei, Cina
Minimum Order Quantity:
1 PC
Delivery Time:
3 hari kerja
Packaging Details:
Karton/kotak Kayu
Payment Terms:
LC, T/T, D/P, PayPal, Western Union
Temperature:
Suhu Biasa
Standard:
Standar
Connection Mode::
Flang
Power:
Listrik
Type:
Katup bola
Body Material:
SUS304 SUS316 Wcb
Control Signal:
4-20mA 0-5V
Sealed Material:
Segel Lunak PTFE
Action Time:
15 detik, 30 detik
Material:
Baja tahan karat
Size:
Dn15 ~ 250
Body Connections:
Wafer/Flang
Operating Pressure:
Pn1.6MPa, Pn2.5MPa
Power Supply:
AC220V, AC380V, DC24V
HS Code:
8481804090
Deskripsi Produk
Katup Kontrol Pasokan Air Listrik
DESKRIPSI Produk:
Katup kontrol pasokan air listrik/katup bola/Wafer/Flang
Deskripsi:
spesifikasi:
| Ukuran katup | DN15~DN100 | |
| Sumber daya listrik | AC220V,AC380V, DC24V | |
| Temp. | ≤ 220oC | |
| Suhu lingkungan. | - 30oC-60oC | |
| Klasifikasi tubuh | 0.1~4.0MPa | |
| Tujuan | Cepat buka dan tutup | |
| Waktu tindakan | 4S/7S ((opsional)) | |
| Medium yang berlaku | Air,Minyak,Gas | |
| Koneksi akhir | Flange, benang | |
| Jenis segel | segel bola dua sisi(kebocoran nol) | |
| Tekanan uji | Tes tubuh | 1.76MPa |
| Uji segel | 2.4MPa | |
| Bahan tubuh | WCB,SUS304,SUS316 | |
| Bahan cincin segel | EPDM,PTFE,PPL,kursi logam | |
| Tingkat perlindungan | IP67 | |
| Standar manufaktur | GB12237-89 AP16D | |
| Standar flange | JB79 GB9113 ANSI B16.5 JIS B2212 | |
| Standar struktur dan panjang | GB1221-89 | |
| Standar inspeksi | JB/T 9092 API598 | |

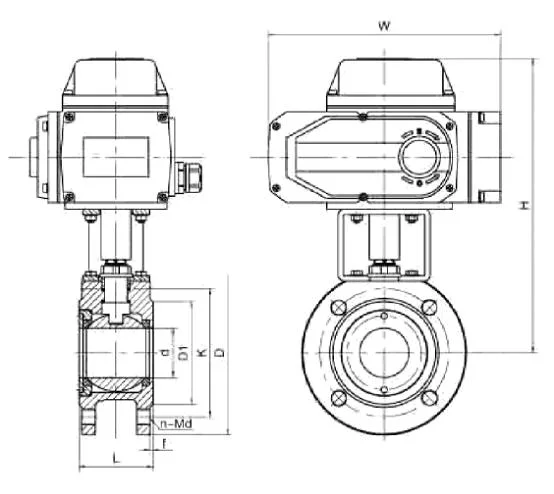

Ukuran Instalasi
| DN | L | D | K | D1 | N-Md | B | Aku | H1 | H2 | W1 | W2 | Berat badan Kilo |
|
| mm | inci | ||||||||||||
| 15 | 1/2′′ | 35 | 95 | 65 | 46 | 4-φM12 | 9 | 2 | 234 | 196 | 145 | 196 | 5.6 |
| 20 | 3/4′′ | 38 | 100 | 75 | 56 | 4-φM12 | 12 | 2 | 242 | 196 | 145 | 196 | 6 |
| 25 | 1′′ | 42 | 110 | 85 | 66 | 4-φM12 | 12.7 | 2 | 218 | 196 | 145 | 196 | 5.8 |
| 32 | 11/4′′ | 52 | 133 | 100 | 78 | 4-φM16 | 14 | 3 | 231 | 196 | 145 | 196 | 6.7 |
| 40 | Pembagian, 11/2 | 61 | 145 | 110 | 87 | 4-φM16 | 15 | 3 | 238 | 196 | 145 | 196 | 7.6 |
| 50 | 2 | 73 | 160 | 125 | 99 | 4-φM16 | 16.7 | 3 | 251 | 196 | 145 | 196 | 8.7 |
| 65 | 21/2′′ | 92 | 180 | 145 | 118 | 4-φM16 | 17.2 | 3 | 265 | 196 | 145 | 196 | 16.8 |
| 80 | 3′′ | 109 | 195 | 160 | 136 | 8-φM16 | 19 | 3 | 298 | 255 | 184 | 255 | 18.6 |
| 100 | 4′′ | 140 | 215 | 180 | 156 | 8-φM16 | 18.5 | 3 | 310 | 255 | 184 | 255 | 21.2 |
Diagram koneksi
Pengemasan & Pengiriman
1.Kemasan: bagian dalam dengan bungkus gelembung, luar dengan kotak kardus dankayukasus.
2Pengangkutan:demi laut,demi udara,dengan kereta api.
Jika Anda memiliki persyaratan lain, jangan ragu untuk memberi tahu kami.
